High Power Mini Switch
Switch high power appliances like water motor, sign boards with timers, mobile app and voice commands.

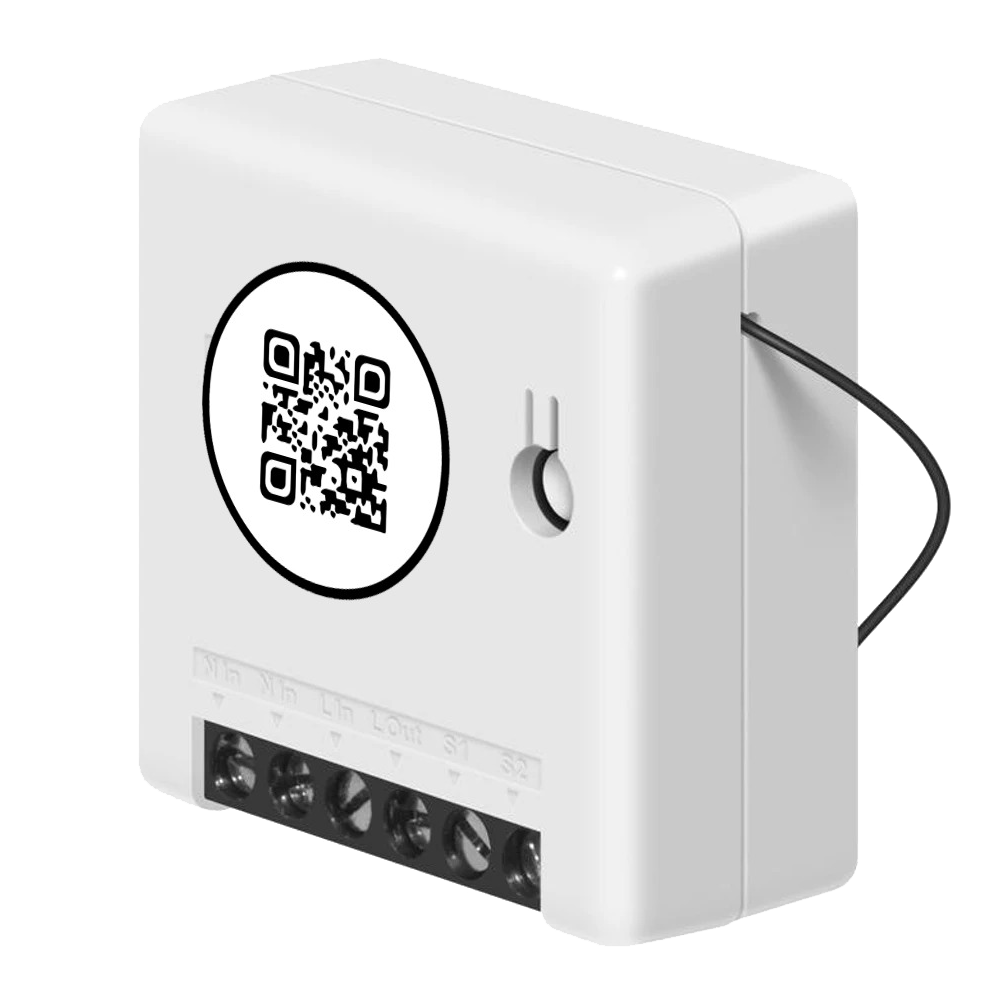

High Power Mini Switch

Features

This high power mini switch also supports manual/external rocker button switching. External switch can also work as 2-way switch.
  • Control using Good Life android app
  • Control using Google Home app on iPhone
  • Manually operate switch with external 1-way or 2-way button
  • Operate with voice commands using Google Assistant and Amazon Alexa
  • Support 16 on device timers that also works when device is offline
  • Support up to 12A or 2640 watts power load
  • Long range wifi external antenna.

Wiring Diagram

Manual Button is Optional
Please turn off main power supply before installing Mini Switch. Connect output powers first then neutral wire and live wire in the end. Tighten the screws and make sure no wire make any electric connection with any other wire to avoid damage to switch and wiring. If needed, also wire up external button as shown in diagram.

Setup Mode

Press and hold setup button for 4 seconds. WiFi light will start blinking rapidly. Device is now in setup mode. Follow Add Device (https://support.goodlife.pk/mobile-app/add-device) to add High Power Mini Switch in your account.

Status LED Light

In normal operation mode, following LED status are available
  • STABLE ON: Switch is connected with wifi router and internet. Output power is ON. Switch should operate using mobile app and voice commands.
  • BLINKING SLOW: Switch is connected with wifi router but internet is not available. Switch will not operate using mobile app or voice commands but it will work with on device button.
  • BLINKING FAST: Switch is not connected with wifi router either because of low wifi signal or router is powered off. Switch will not operate using mobile app or voice commands but it will work with on device button.
  • LIGHT OFF: Switch is connected with wifi router and internet. Output power is OFF. Switch should operate using mobile app and voice commands.
