High Power Smart Switch

Switch high power appliances like water motor, water dispenser with timers, mobile app and voice commands.
High Power Smart Switch

Features

High power smart switch comes in white color with 220V input and output voltage.

  • Control using Good Life android app

  • Control using Google Home app on iPhone

  • Manually operate switch with on device button

  • Operate with voice commands using Google Assistant and Amazon Alexa

  • Support 16 on device timers that also works when device is offline

  • Support up to 10A or 2200 watts power load.

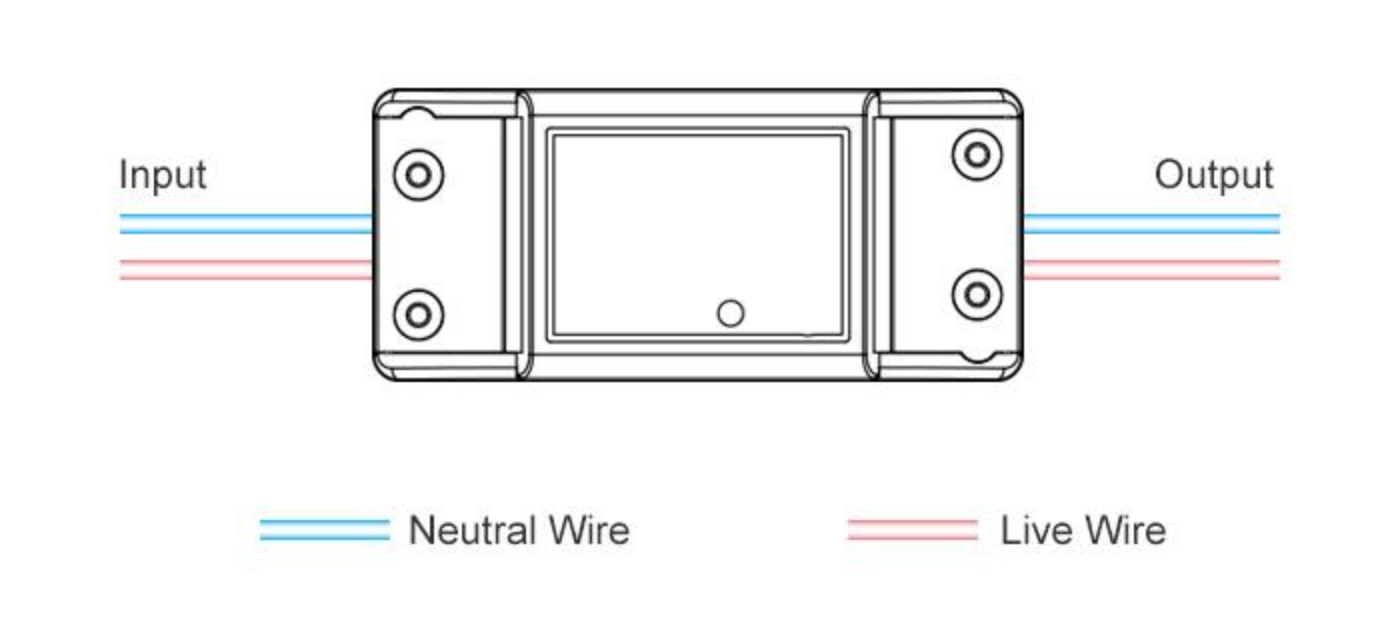

Wiring Diagram

Please turn off main power supply before installing High Power Smart Switch. Connect output powers first then neutral wire and live wire in the end. Tighten the screws and make sure no wire make any electric connection with any other wire to avoid damage to switch and wiring.

Setup Mode

Press and hold setup button for 4 seconds. WiFi light will start blinking rapidly. Device is now in setup mode. Follow Add Device (https://support.goodlife.pk/mobile-app/add-device) to add High Power Smart Switch in your account.

Pairing with RF Remote

Press and hold power button for 3 seconds until you see red LED blink one time. Now press any of available button on RF remote to pair. Your output device will toggle its power state.

UNPAIR: Press and hold power button for 5 seconds until you see red LED blink two times and press button on your RF remote to unpair.

Status LED Light

In normal operation mode, following LED status are available

  • STABLE ON: Switch is connected with wifi router and internet. Output power is ON. Switch should operate using mobile app and voice commands.

  • BLINKING SLOW: Switch is connected with wifi router but internet is not available. Switch will not operate using mobile app or voice commands but it will work with on device button.

  • BLINKING FAST: Switch is not connected with wifi router either because of low wifi signal or router is powered off. Switch will not operate using mobile app or voice commands but it will work with on device button.

  • LIGHT OFF: Switch is connected with wifi router and internet. Output power is OFF. Switch should operate using mobile app and voice commands.
